Execute a Workflow#

After creating a workflow, see Compose a workflow, you can execute it using the HydroFlows framework or export it to a workflow engine to execute it. HydroFlows has a simple implementation which is most suitable for testing parts of your workflow or running simple workflows. For most workflows, we recommend exporting the workflow to a workflow engine which has more extended capabilities for parallelization, job caching, etc. Currently, HydroFlows supports exporting workflows to the SnakeMake workflow engine and the Common Workflow Language (CWL), but other workflow engines can be added in the future. We don’t aim to support all features of the workflow engines but rather provide a simple way to export functioning workflows to these engines. We recommend using the HydroFlows framework to create, validate, edit, and configure the workflow and use the workflow engine only to execute the workflow. Below we describe how to execute a workflow in HydroFlows, and with both supported workflow engines.

Execute with HydroFlows#

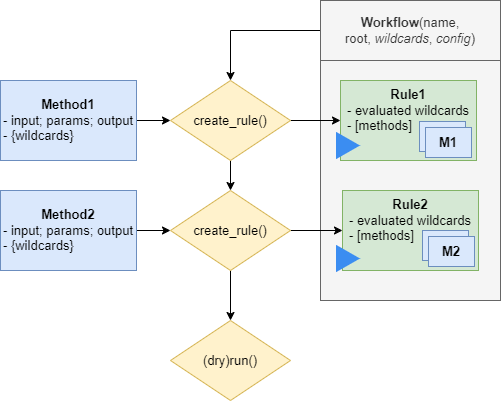

HydroFlows provides a simple implementation to run or dryrun a workflow, by running all rules of the workflow in sequence, as shown in the figure below.

Execute workflow

The dryrun() method tests if all input files exist and methods in- and outputs are linked correctly. In the example below, a simple workflow is created and the dryrun method called. Note that you need to instantiate a logger to get feedback. You can define the level of verbosity by setting the log level, at minimal a warning level is required to see if files are missing.

# import Python modules
In [1]: import logging

In [2]: import tempfile

In [3]: from pathlib import Path

# import the necessary HydroFlows classes
In [4]: from hydroflows.methods.dummy import (
   ...:     CombineDummyEvents,
   ...:     PrepareDummyEvents,
   ...:     RunDummyEvent,
   ...: )
   ...:

In [5]: from hydroflows.workflow import Workflow

# set the log level and format
In [6]: logging.basicConfig(level=logging.INFO, format='%(levelname)s:%(message)s')

# initialize a workflow with input files in the configuration
In [7]: input_files = {
   ...:     "model_exe": "bin/model/model.exe",
   ...:     "model_settings": "model/settings.toml",
   ...:     "timeseries_csv": "data/timeseries.csv",
   ...: }
   ...:

In [8]: wf = Workflow(root=tempfile.mkdtemp(), config=input_files)

# rule 1
In [9]: prepare_events = PrepareDummyEvents(
   ...:     timeseries_csv=wf.get_ref("$config.timeseries_csv"),
   ...:     output_dir="events",
   ...:     rps=[1, 10, 100],
   ...:     wildcard="event",
   ...: )
   ...:

In [10]: wf.create_rule(prepare_events, rule_id="prepare_events")
Out[10]: Rule(id=prepare_events, method=prepare_dummy_events, runs=1, expand=['event'])

# rule 2
In [11]: simulate_events = RunDummyEvent(
   ....:     event_csv=prepare_events.output.event_csv,
   ....:     settings_toml=wf.get_ref("$config.model_settings"),
   ....:     model_exe=wf.get_ref("$config.model_exe"),
   ....:     output_dir="model",
   ....:     event_name="{event}",
   ....: )
   ....:

In [12]: wf.create_rule(simulate_events, rule_id="simulate_events")
Out[12]: Rule(id=simulate_events, method=run_dummy_event, runs=3, repeat=['event'])

# rule 3
In [13]: combine_events = CombineDummyEvents(
   ....:     model_out_ncs=simulate_events.output.model_out_nc,
   ....:     output_dir="results",
   ....: )
   ....:

In [14]: wf.create_rule(combine_events, rule_id="combine_events")
Out[14]: Rule(id=combine_events, method=combine_dummy_events, runs=1, reduce=['event'])

# inspect the workflow
In [15]: print(wf)
Workflow(
wildcards={'event': ['0001', '0010', '0100']}
rules=[Rule(id=prepare_events, method=prepare_dummy_events, runs=1, expand=['event'])
Rule(id=simulate_events, method=run_dummy_event, runs=3, repeat=['event'])
Rule(id=combine_events, method=combine_dummy_events, runs=1, reduce=['event'])]
)

# dryrun the workflow, note the missing file warnings
In [16]: wf.dryrun()

# create missing input files
In [17]: for filename in input_files.values():
   ....:     file = Path(wf.root, filename)
   ....:     file.parent.mkdir(parents=True, exist_ok=True)
   ....:     file.touch()
   ....:

# repeat the dryrun
In [18]: wf.dryrun()

The workflow is executed by calling the run() method. Different instances of methods under one rule (i.e., for repeat wildcards) can be run in parallel using the max_workers argument.

# run the workflow
In [19]: wf.run(max_workers=2)

Export to and execute with Workflow Engine#

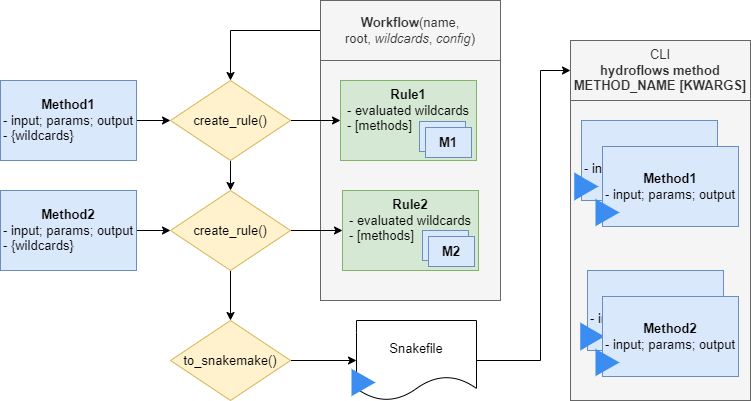

Exporting a workflow to a workflow engine provides more extended capabilities for parallelization, scalability, and job caching. Compared to running the workflow with HydroFlows, the workflow engine calls methods via the HydroFlows command line interface (CLI) (see Command-line Interface) outside of the Python kernel, see figure below.

Parse to SnakeMake and execute

Export to SnakeMake#

The to_snakemake() method converts the workflow to a SnakeMake file. The SnakeMake file is by default saved as Snakefile in the root directory of the workflow. The method also creates a configuration file in the root directory with the same name as the SnakeMake file but with the extension .config.yml. The configuration file contains the input files and parameters of the workflow and is referenced in the SnakeMake file.

# convert the workflow to a snakemake file
In [20]: wf.to_snakemake()

# "Snakefile" and "Snakefile.config.yml" should be in the root directory
In [21]: print([f.name for f in wf.root.glob("*") if f.is_file()])
['Snakefile', 'Snakefile.config.yml']

Execute with SnakeMake#

Note

The SnakeMake library is required to use the SnakeMake CLI and is not included in the default HydroFlows dependencies. To install SnakeMake, we refer to the SnakeMake installation guide.

The SnakeMake file can be executed using the SnakeMake command line interface (CLI). Below we show two of the most common commands to visualize, dry-run, and run the workflow. The full documentation of the CLI can be found here.

Snakemake creates a DAG of the workflow which can be visualized using the snakemake --dag command, as shown below.

$ snakemake --dag Snakefile | dot -Tsvg > dag.svg

The SnakeMake file can be executed using the snakemake command together with the number of cores to use, as shown below. Snakemake profiles can be used to specify the number of cores, memory, SLURM HPC settings, etc., which needs to be specified outside of the HydroFlows framework.

$ snakemake -s Snakefile --cores 2

Limitations#

Currently, the HydroFlows framework does not support all features of the SnakeMake workflow engine. For example, the following features are not supported:

  • Rule settings: Specifying the number of threads, resources (e.g., memory, time), priority at the rule level is not yet supported.

  • Directories as output: Currently, only files can be used as output, not directories.

  • Protected and temporary files: The protected and temp flags are not yet supported.

  • Code tracking: We use the shell directive to run the methods using the HydroFlows CLI, which does not track the code.

Export to CWL#

Note

The Common Workflow Language (CWL) support is under development and will soon be available in HydroFlows.

Command-line Interface#

The command line interface (CLI) is meant to provide a generic interface to run methods within the HydroFlows framework. Almost any workflow engine supports CLI commands which makes it possible to run the workflows from external workflows engines. Note that users typically do not need to use the CLI directly, but rather use the Python API to create and export workflows which contain the CLI commands.

The CLI is available as the hydroflows command after installation of the HydroFlows package. The main subcommand is method which serves as a generic CLI to any Hydroflows Method subclass. The method subcommand first validates the parameters by initializing the method Method(**kwargs) and then calls the run() method to execute the method. You can find the syntax of the subcommand using the –help flag:

$ hydroflows method --help

Usage: hydroflows method [OPTIONS] METHOD_NAME [KWARGS]...

  Run a method with a set of key-word arguments.

  METHOD_NAME is the name of the method to run, e.g., 'build_wflow'. KWARGS is
  a list of key-value pairs, e.g., 'input=foo output=bar'.

Options:
  --dry_run, --dryrun  Perform a dry_run of the method.
  --touch-output       Create empty files at output location during dryrun.
  --help               Show this message and exit.
